WPF 시계만들기

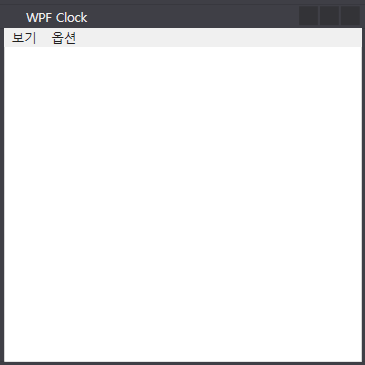

디자인





디자인

<Window x:Class="_044_Clock.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:_044_Clock"
        mc:Ignorable="d"
        Title="WPF Clock" Height="350" Width="350">
    <StackPanel>
        <Menu>
            <MenuItem Header="보기">
                <MenuItem Header="아날로그 시계" Click="aClock_Click"/>
                <MenuItem Header="디지털 시계" Click="dClock_Click"/>
                <Separator/>
                <MenuItem Header="종료" Click="Exit_Click"/>
            </MenuItem>
            <MenuItem Header="옵션">
                <MenuItem Header="초 단위" Click="Sec_Click"/>
                <MenuItem Header="밀리초 단위" Click="MS_Click"/>
            </MenuItem>
        </Menu>
        <Grid Margin="10">
            <Canvas x:Name="canvas1" Width="250" Height="250">
                <Ellipse x:Name="aClock" Width="250" Height="250" />
            </Canvas>
            <TextBlock x:Name="txtDate" FontFamily="맑은 고딕" FontSize="15" Margin="15 50" Foreground="OrangeRed"/>
            <TextBlock x:Name="txtTime" FontFamily="DokChampa" FontSize="40"  HorizontalAlignment="Center" VerticalAlignment="Center" Foreground="RoyalBlue"/>
        </Grid>
    </StackPanel>
</Window>

StackPanel을 틀로 사용해 만들었고 시계를 그려주기위해 Canvas를 사용하였다.

Menu를 통해 보기와 옵션을 넣어주었다.





Main및 timerSetting()

public partial class MainWindow : Window
    {
        bool aClock_Flag = true;
        Point center;
        double radius;
        int hourHand;
        int minHand;
        int secHand;
        bool ms_flag = false;
        DispatcherTimer timer = new DispatcherTimer();
        public MainWindow()
        {
            InitializeComponent();
            aClockSetting();
            timerSetting();
        }

        private void timerSetting()
        {

            timer.Interval = new TimeSpan(0,0,0,0,10); //0.01초에 한번
            timer.Tick += Timer_Tick;
            timer.Start();
        }

 DispatcherTimer timer = new DispatcherTimer(); 를 사용하여 시계를 구현하였다. Dispatcher를 사용하기 위해서

using System.Windows.Threading; 추가해주었다.



aClockSetting()

 private void aClockSetting()
        {
            center = new Point(canvas1.Width / 2, canvas1.Height / 2);
            radius = canvas1.Width / 2;
            hourHand = (int)(radius * 0.45);
            minHand = (int)(radius * 0.55);
            secHand = (int)(radius * 0.65);
        }

사실 구현한 알고리즘 자체는 저번에 winForm을 구현했을때와 같다.



Timer_Tick()

 private void Timer_Tick(object sender, EventArgs e)
        {
            DateTime c=DateTime.Now;

            canvas1.Children.Clear(); //현재 화면 지우기


            if (aClock_Flag)
            {

                DrawClockFace();
                double radHr = (c.Hour % 12 + c.Minute / 60) * 30 * Math.PI / 180;
                double radMin = (c.Minute + c.Second / 60) * 6 * Math.PI / 180;
                double radSec = (c.Second * 6) * Math.PI / 180;

                DrawHands(radHr, radMin, radSec);
            }
            else
            {
                txtDate.Text = DateTime.Today.ToString("D");
                if (ms_flag)
                {
                    txtTime.Text = string.Format("{0:D2}:{1:D2}:{2:D2}:{3:D3}", c.Hour, c.Minute, c.Second,c.Millisecond);
                }
                else
                {
                    txtTime.Text = string.Format("{0:D2}:{1:D2}:{2:D2}", c.Hour, c.Minute, c.Second);
                }

            }
        }

윈폼과 마찬가지로 aClock_Flag은 아날로그 시계와 디지털 시계를 구별하기 위해 사용하였다.



DrawClockFace()

  private void DrawClockFace()
        {
            aClock.Stroke = Brushes.LightSteelBlue;
            aClock.StrokeThickness = 30;
            canvas1.Children.Add(aClock);
        }

저기 aClock은 xaml에서 구현한 Ellipse의 이름이다.

Children.Add를 통해 그려준다.





DrawHands()

  private void DrawHands(double radHr, double radMin, double radSec)
        {
            DrawLine(0, 0, (int)(secHand * Math.Sin(radSec)), (int)(secHand * Math.Cos(radSec)), Brushes.OrangeRed, 4);
            DrawLine(0, 0, (int)(minHand * Math.Sin(radMin)), (int)(minHand * Math.Cos(radMin)), Brushes.Blue, 4);
            DrawLine(0, 0, (int)(hourHand * Math.Sin(radHr)), (int)(minHand * Math.Cos(radHr)), Brushes.Green, 4);

            int coreSize = 16;
            Ellipse core = new Ellipse();
            core.Margin = new Thickness(center.X - coreSize / 2, center.Y - coreSize / 2, 0, 0);
            core.Stroke = Brushes.SteelBlue;
            core.StrokeThickness = 3;
            core.Fill = Brushes.LightSteelBlue;
            core.Width = coreSize;
            core.Height = coreSize;
            canvas1.Children.Add(core);
        }

알고리즘은 전과 동일하고 시계배꼽을 만들어주기위해 Ellipse를 core를 생성 시계 정중앙으로 설정하고 Stroke를 SteelBrue로 굵기는 3으로 설정하였고 색은 LightSteelBlue를 사용하였다.

여기서도 Children.Add를 사용하여 그려주었다.



using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
using System.Windows.Threading;

namespace _044_Clock
{

    public partial class MainWindow : Window
    {
        bool aClock_Flag = true;
        Point center;
        double radius;
        int hourHand;
        int minHand;
        int secHand;
        bool ms_flag = false;
        DispatcherTimer timer = new DispatcherTimer();
        public MainWindow()
        {
            InitializeComponent();
            aClockSetting();
            timerSetting();
        }

        private void timerSetting()
        {

            timer.Interval = new TimeSpan(0,0,0,0,10); //0.01초에 한번
            timer.Tick += Timer_Tick;
            timer.Start();
        }

        private void Timer_Tick(object sender, EventArgs e)
        {
            DateTime c=DateTime.Now;

            canvas1.Children.Clear(); //현재 화면 지우기


            if (aClock_Flag)
            {

                DrawClockFace();
                double radHr = (c.Hour % 12 + c.Minute / 60) * 30 * Math.PI / 180;
                double radMin = (c.Minute + c.Second / 60) * 6 * Math.PI / 180;
                double radSec = (c.Second * 6) * Math.PI / 180;

                DrawHands(radHr, radMin, radSec);
            }
            else
            {
                txtDate.Text = DateTime.Today.ToString("D");
                if (ms_flag)
                {
                    txtTime.Text = string.Format("{0:D2}:{1:D2}:{2:D2}:{3:D3}", c.Hour, c.Minute, c.Second,c.Millisecond);
                }
                else
                {
                    txtTime.Text = string.Format("{0:D2}:{1:D2}:{2:D2}", c.Hour, c.Minute, c.Second);
                }

            }
        }

        private void DrawHands(double radHr, double radMin, double radSec)
        {
            DrawLine(0, 0, (int)(secHand * Math.Sin(radSec)), (int)(secHand * Math.Cos(radSec)), Brushes.OrangeRed, 4);
            DrawLine(0, 0, (int)(minHand * Math.Sin(radMin)), (int)(minHand * Math.Cos(radMin)), Brushes.Blue, 4);
            DrawLine(0, 0, (int)(hourHand * Math.Sin(radHr)), (int)(minHand * Math.Cos(radHr)), Brushes.Green, 4);

            int coreSize = 16;
            Ellipse core = new Ellipse();
            core.Margin = new Thickness(center.X - coreSize / 2, center.Y - coreSize / 2, 0, 0);
            core.Stroke = Brushes.SteelBlue;
            core.StrokeThickness = 3;
            core.Fill = Brushes.LightSteelBlue;
            core.Width = coreSize;
            core.Height = coreSize;
            canvas1.Children.Add(core);
        }

        private void DrawLine(int x1, int y1, int x2, int y2, Brush brush, int thick)
        {
            Line line = new Line();
            line.X1 = x1;
            line.Y1 = y1;
            line.X2 = x2;
            line.Y2 = -y2;
            line.Stroke = brush;
            line.StrokeThickness = thick;
            line.Margin = new Thickness(center.X, center.Y, 0, 0);
            line.StrokeEndLineCap=PenLineCap.Round;
            canvas1.Children.Add(line);
        }

        private void DrawClockFace()
        {
            aClock.Stroke = Brushes.LightSteelBlue;
            aClock.StrokeThickness = 30;
            canvas1.Children.Add(aClock);
        }

        private void aClockSetting()
        {
            center = new Point(canvas1.Width / 2, canvas1.Height / 2);
            radius = canvas1.Width / 2;
            hourHand = (int)(radius * 0.45);
            minHand = (int)(radius * 0.55);
            secHand = (int)(radius * 0.65);
        }

        private void aClock_Click(object sender, RoutedEventArgs e)
        {
            aClock_Flag = true;
            txtDate.Text = "";
            txtTime.Text = "";
        }

        private void dClock_Click(object sender, RoutedEventArgs e)
        {
            aClock_Flag = false;
        }

        private void Exit_Click(object sender, RoutedEventArgs e)
        {
            this.Close();
        }

        private void Sec_Click(object sender, RoutedEventArgs e)
        {
            timer.Interval = new TimeSpan(0, 0, 0, 1);
            ms_flag = false;
        }

        private void MS_Click(object sender, RoutedEventArgs e)
        {
            timer.Interval = new TimeSpan(0, 0, 0,0, 10);
            ms_flag = true;
        }
    }
}

전체코드이다.

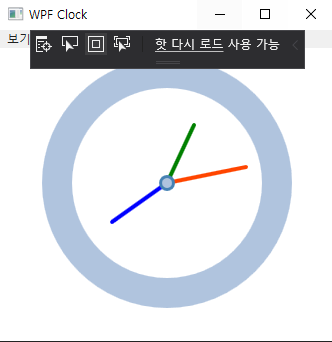

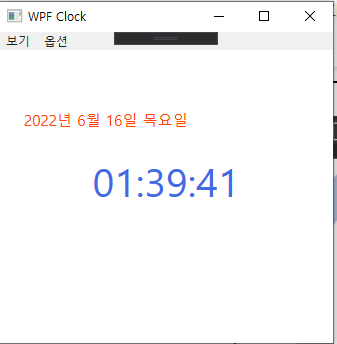

실행결과

실행결과
